Disassembly of the headlights of the M9
M9 car headlight assembly

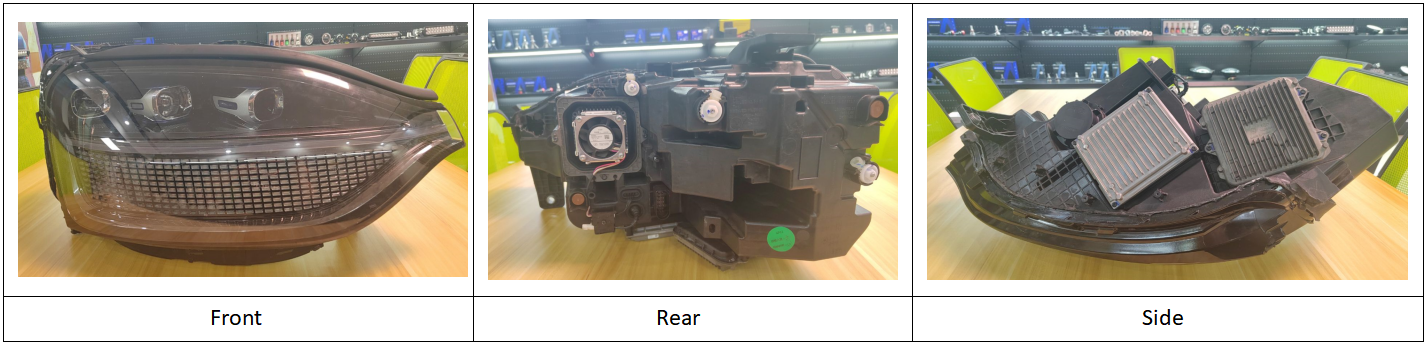

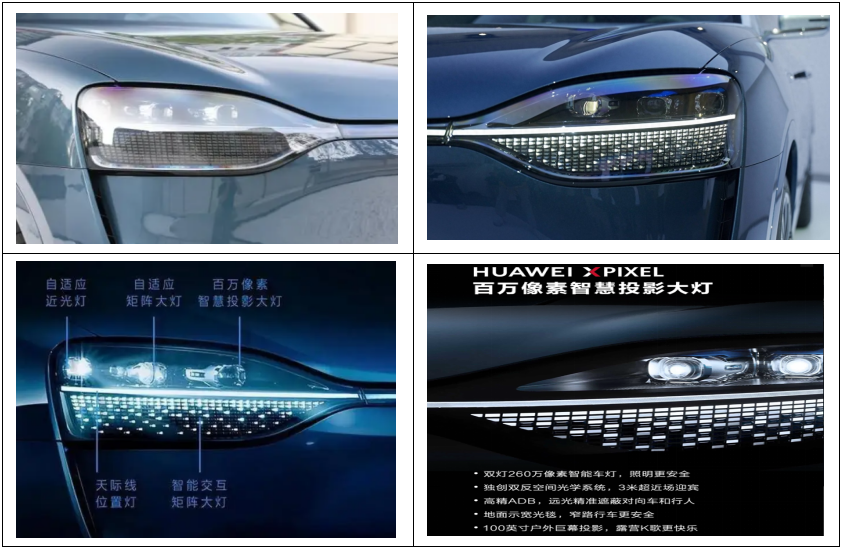

Pictures of various sides of M9 headlight:

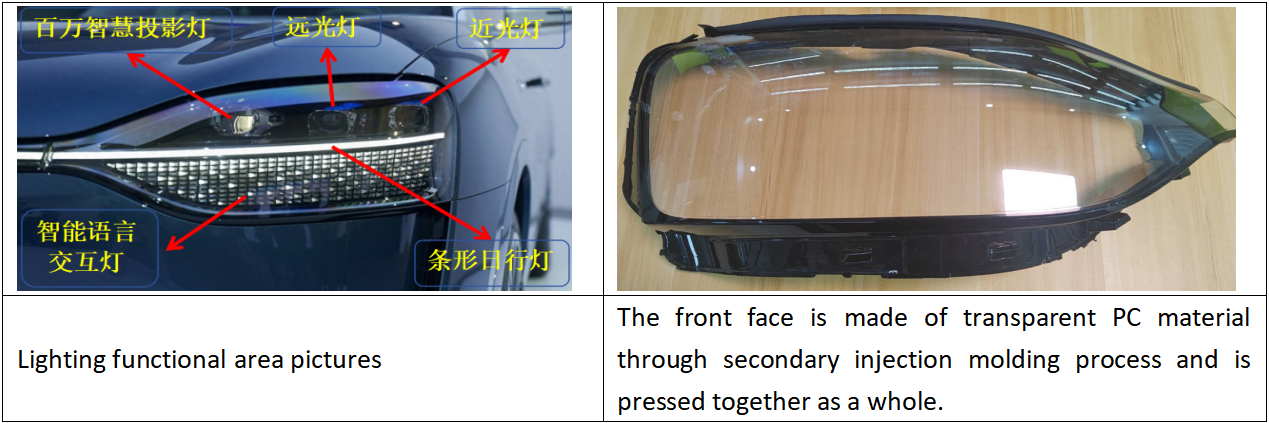

1. Front part of the Headlight:
The headlight size is around 80*30*30cm, 10.5Kg and entire headlight assembly is divided into two parts:

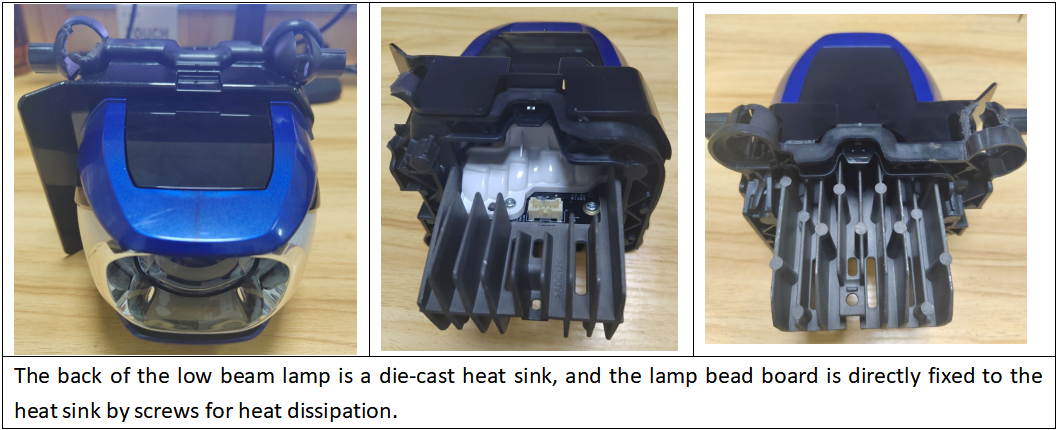

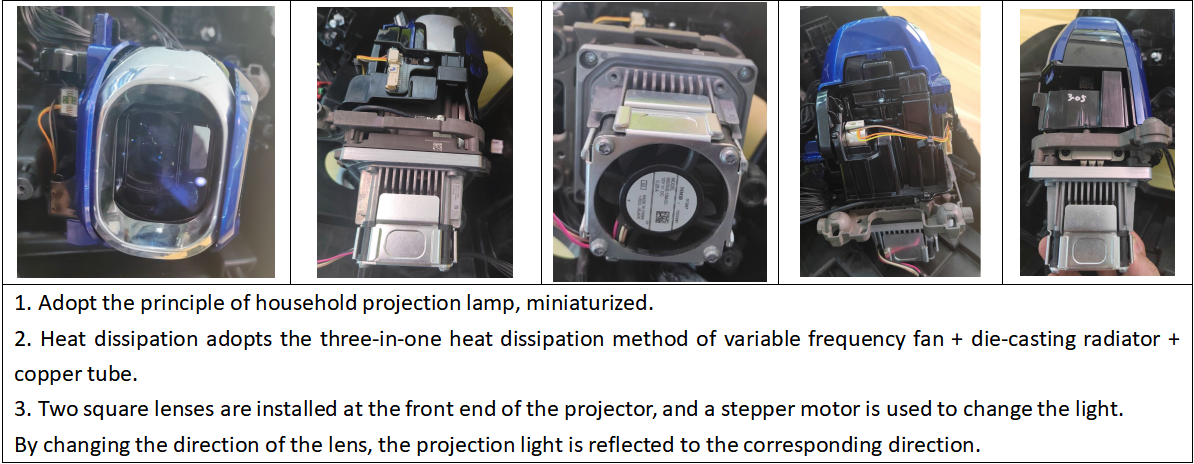

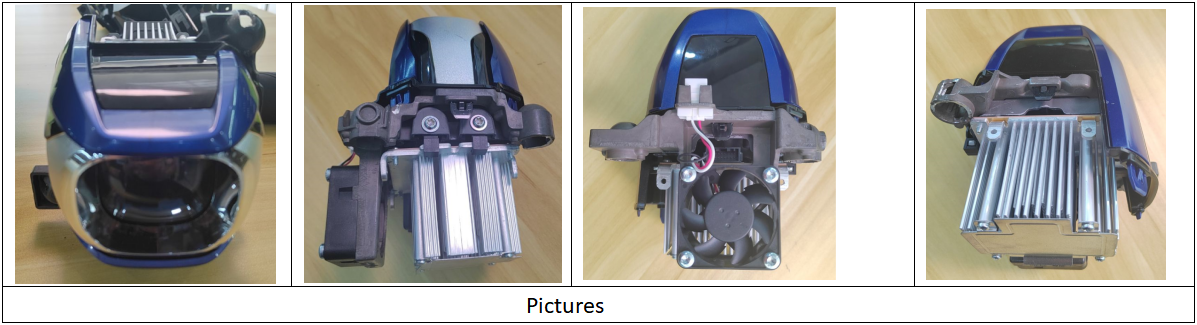

The upper part has low beam,high beam and million smart projection lights

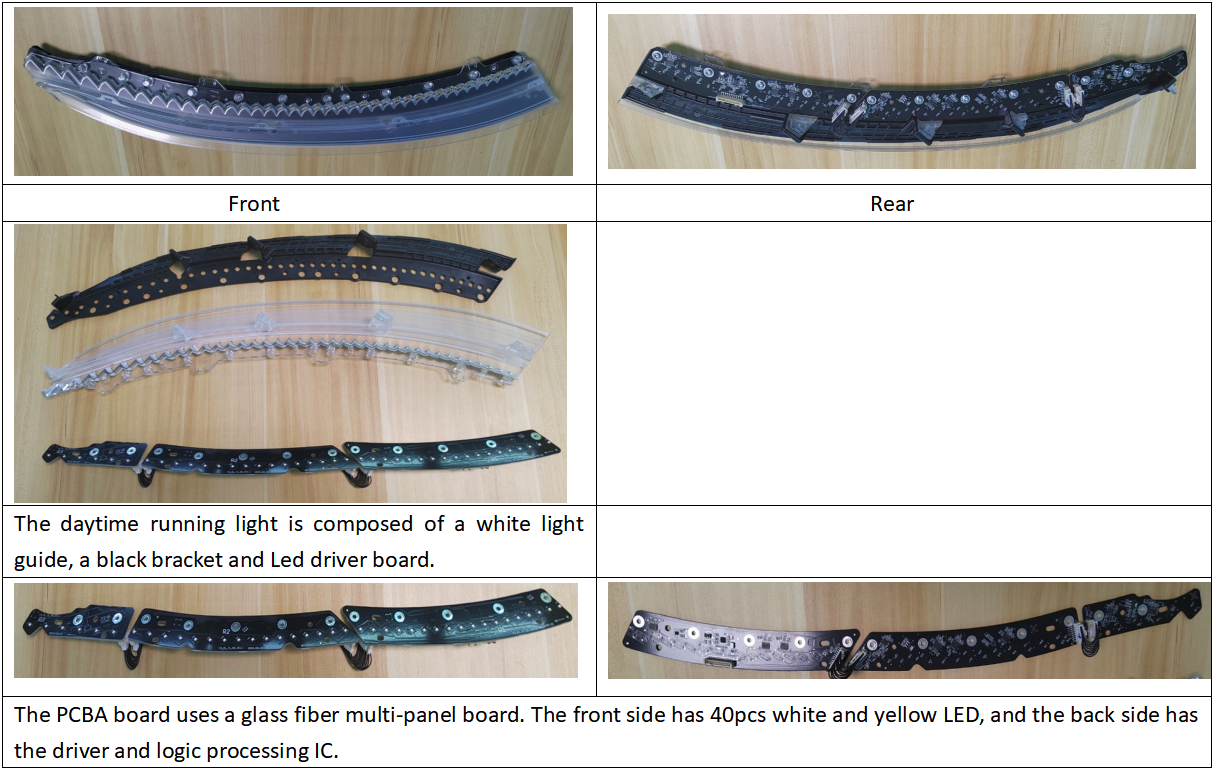

The lower part is the smart language interactive light, separated by a strip daytime running light in the middle.

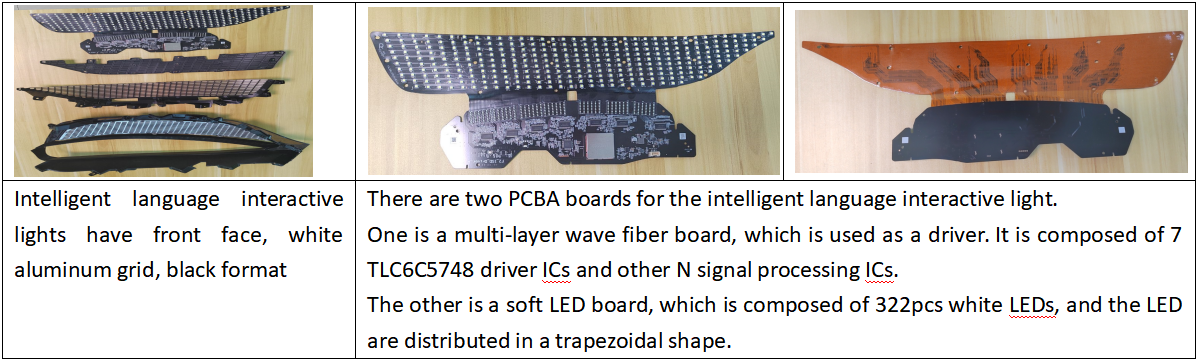

4. Intelligent language interactive light part:

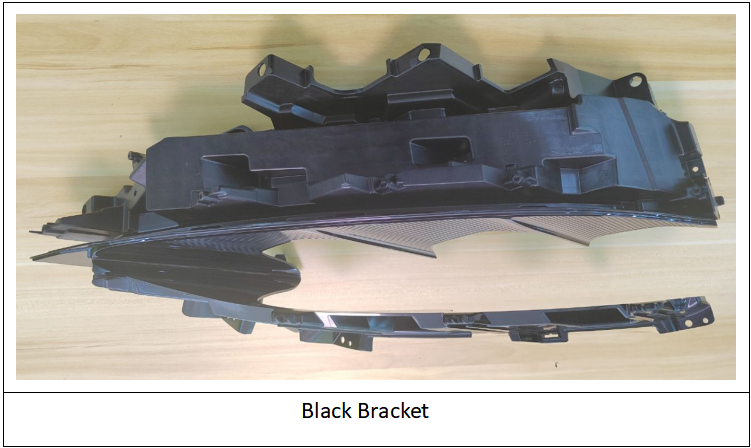

There is a large black bracket inside the headlight assembly, which has the following functions:
a. Fix the daytime running lights and the intelligent language interaction lights
b. Isolate the daytime running lights, the intelligent language interaction lights and the high beam/low beam/projection lights and divide them into different areas
c. Strengthen the strength between the headlight and the shell to prevent the headlight deformation.

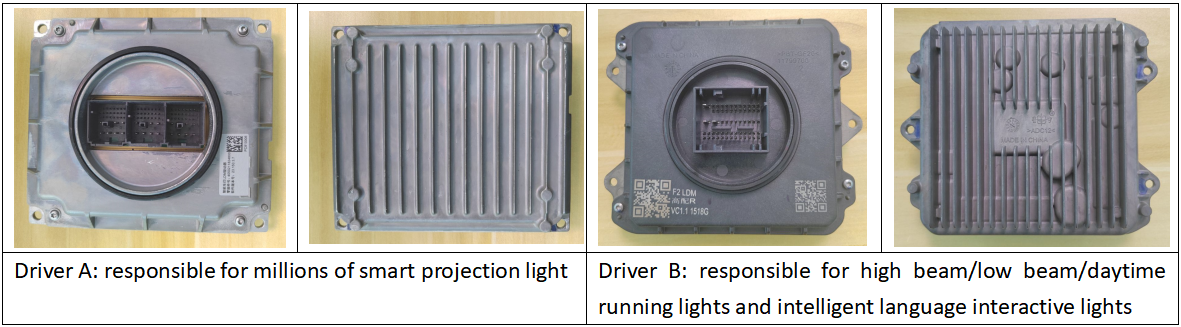

There are two drivers for the headlight assembly:
The one is responsible for the millions smart projection lights
The other is responsible for the high beam/low beam/daytime running lights and smart language interactive lights
